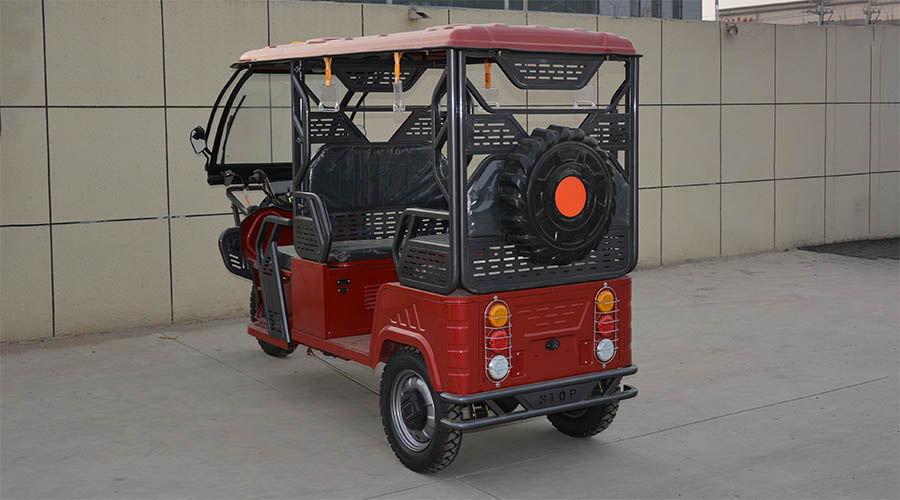

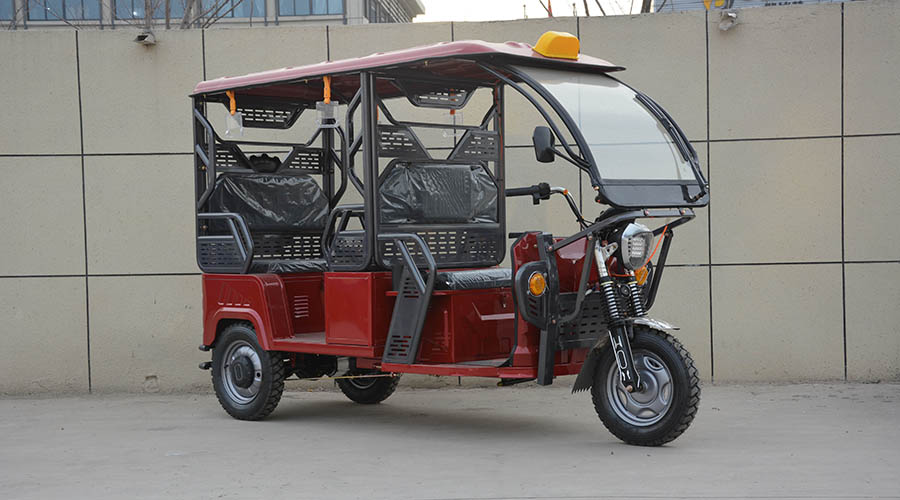

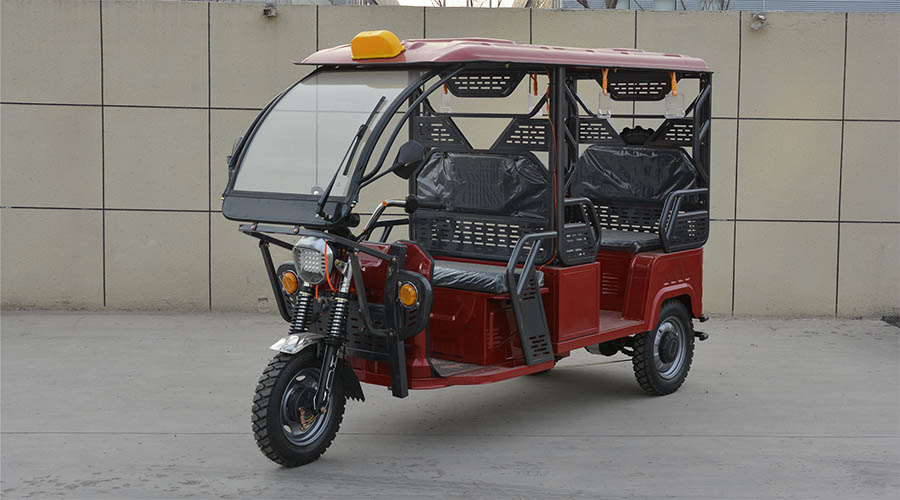

Tuktuk Tricycle-AP-EPT09













































Battery 60V 100Ah
Power  1500W differential motor
 Voltage 60V
Vehicle dimensions (length * width * height) mm 2780*1300*1780mm
 Ground Clearance   300mm
 Tire Size Front 375-12, rear 375-12 (non-vacuum)
 Transmission mode 2150mm
 Rim typ
Battery

12V 100AH lead-acid battery, with the maximum size of 420*180*280, 4 pieces

(optional 5 pieces).

 Shock absorption Hydraulic external spring
Baking paint process Electrophoretic paint
Brake System Front disc and back drum
Grade Ability ≤20°
quality 245KG
Rated loading weight ≤500KG
Charge Time(h)
 Maximum Speed ≤40km/h
Braking Distance  3.2M
 Driving Mileage 100-120km
Wiper /
Headlight LED spotlight
  display Liquid crystal display, reversing image, rearview mirror
 Media player USB/SD/Radio
 Life Span 5 years
Color Support customization
Scalable /
