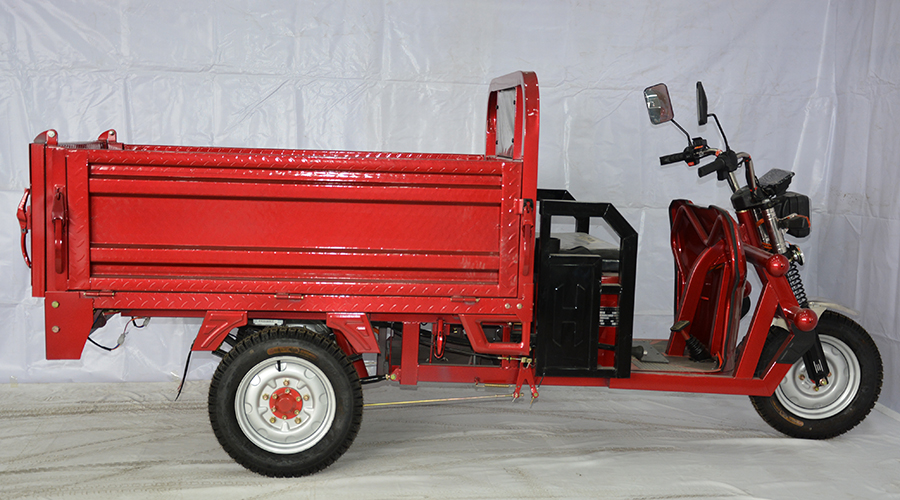

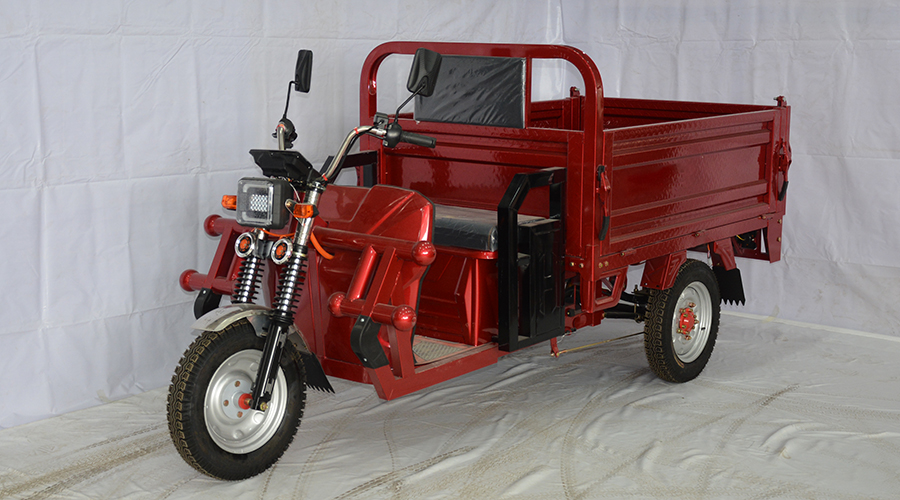

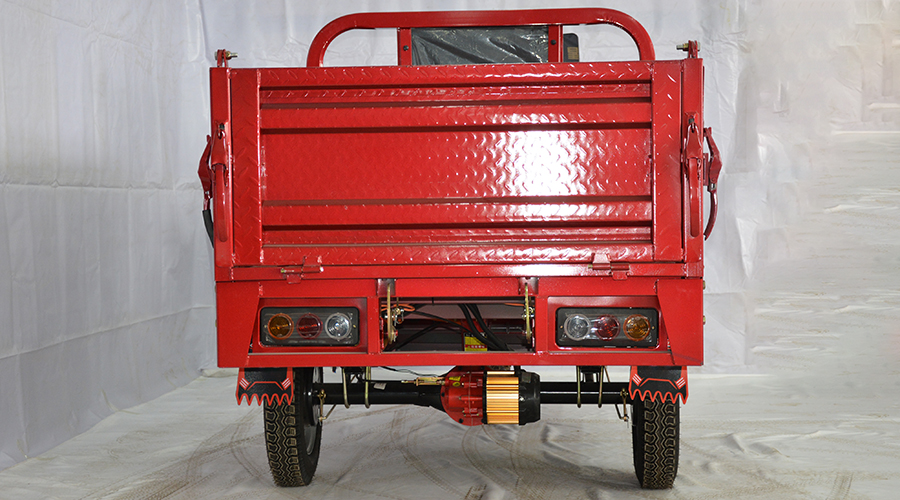

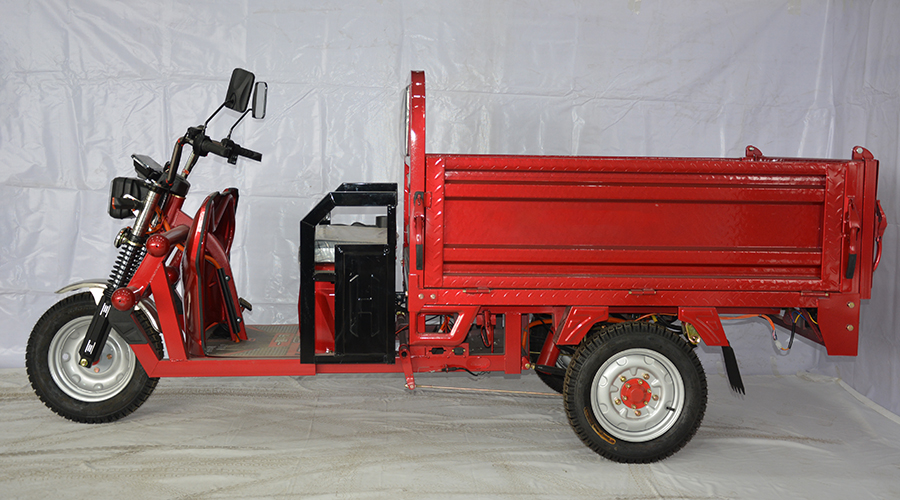

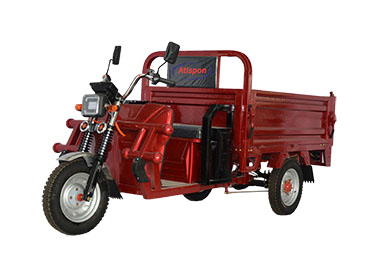

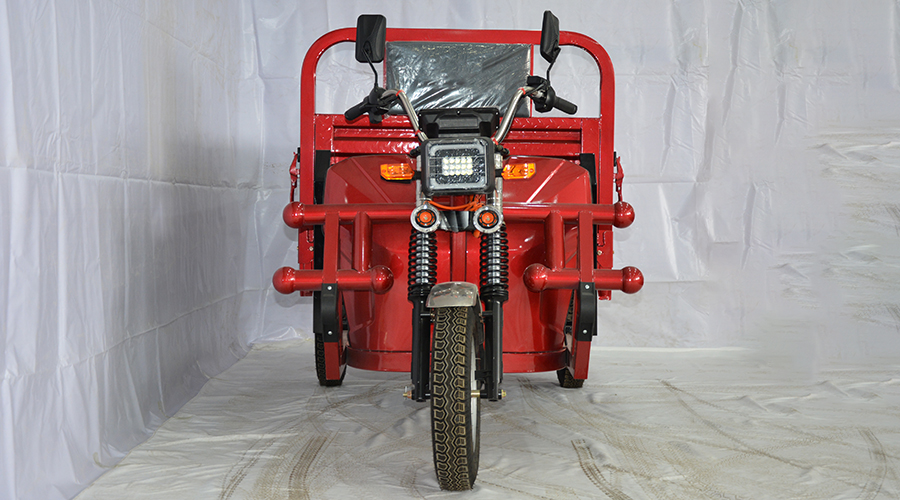

Cargo Tricycle-AP-EC16S
Power | 1500W permanent magnet power |
Voltage | 48V-60V |
Controller | Permanent magnet double 24 tubes, 60A |
Vehicle dimensions (length * width * height) mm | 3100*1180*1360mm |
Cargo Boxe Size (length * width) | 1600*1100mm, with a total length of 3200mm |
Ground Clearance mm | 240mm |
Transmission mode | 2000mm |
Tire Size | Front 400-12, back 450-12 |
Rim typ | 400-12 |
Seat Size | 740*350mm |
Battery | Optional (lead acid, lithium battery) |
Rear axle | 180 fully suspended rear axle |
Front shock absorber | 43 external spring hydraulic shock absorption |
Baking paint process | Electrophoretic paint |
Brake System | Front and rear disc brakes |
Grade Ability | 20-30° |
Car material mm | GB 1.2 thick. Heightened steel door core and steel plate bottom. |
maximum total mass | 300KG |
Rated loading weight | 1500KG |
Charge Time(h) | 6-7h |
Maximum Speed | 35-50km/h |
Driving Mileage | 70-90km |
Rear shock absorption | 10 kg positive and negative steel plate |
Headlight | LED spotlight headlight |
display | Langtou instrument |
Life Span | 5 years |
Color | Lake blue, China red, ice blue, space gray |
Upgradeable (optional) | / |
