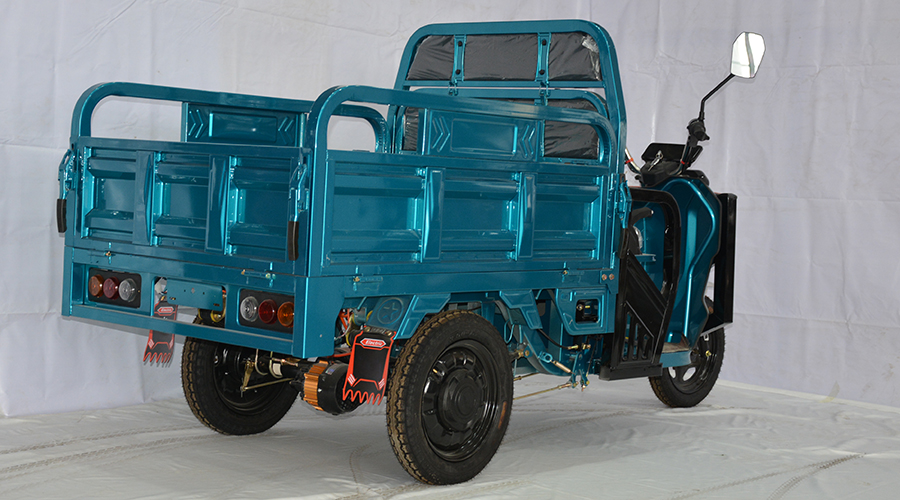

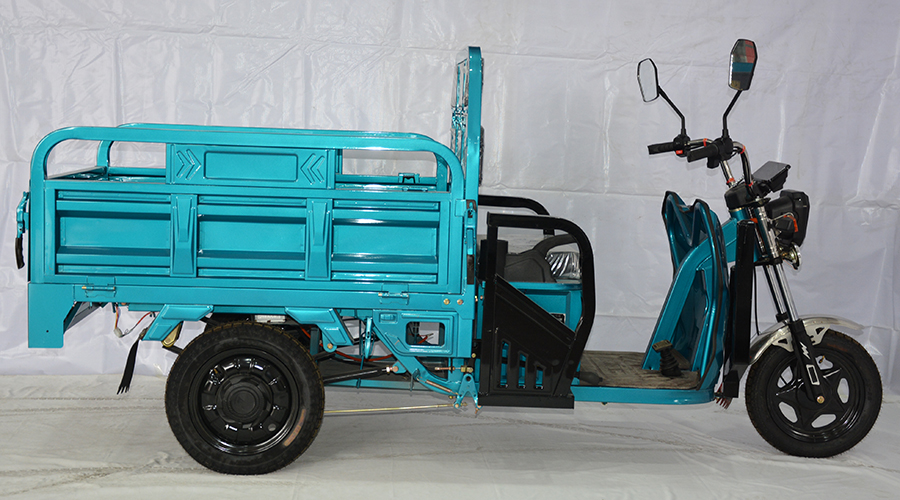

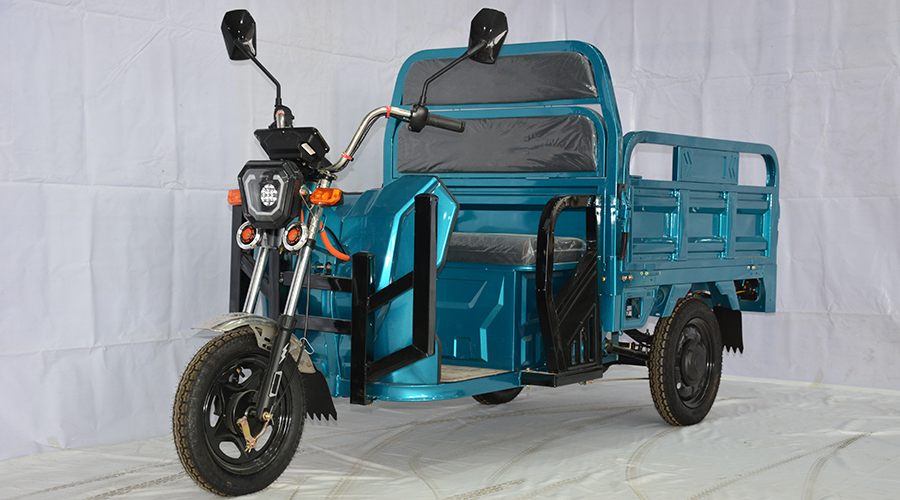

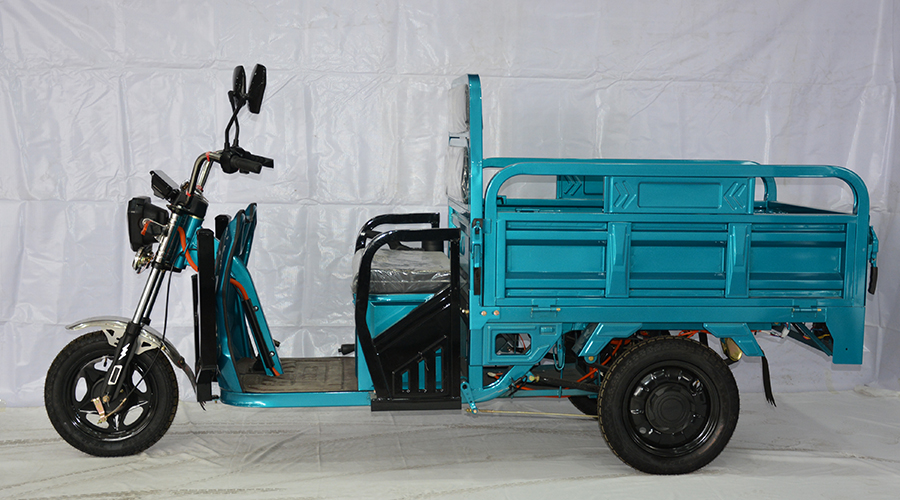

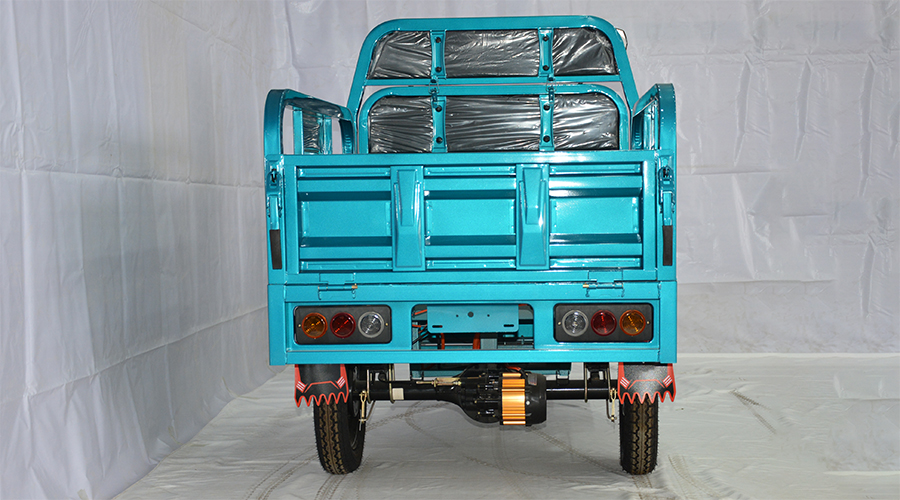

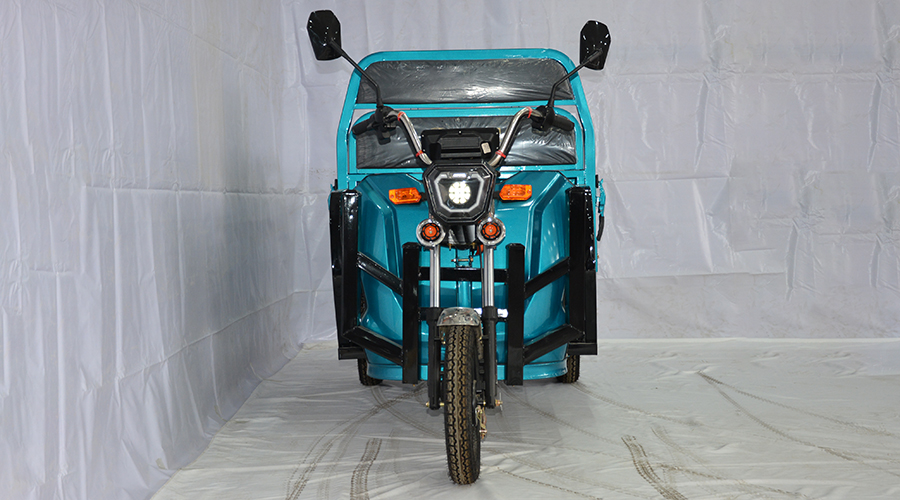

Cargo Tricycle-AP-EC13

















 Power 800W permanent magnet
Voltage 48V-60V
Controller Permanent magnet 18 tubes, 40A
Vehicle dimensions (length * width * height) mm 2790*1020*1360mm
 Cargo Boxe Size (length * width) 1300*950mm, with a total length of 2900mm.
 Ground Clearance  mm 240mm
 Transmission mode 1860mm
Tire Size Before 350-12, after 350-12
Rim typ 350-12
 Seat Size 740*350mm
 Battery  Optional (lead acid, lithium battery)
 Rear axle 130 split shift
Front shock absorber 37 Internal spring hydraulic shock absorption
Baking paint process Electrophoretic paint
Brake System Front and rear disc brakes
Grade Ability ≤25°
Car material mm GB 1.2 Car bottom, 07 door core
maximum total mass 191KG
Rated loading weight 650KG
 Charge Time(h)

6-7h

 Maximum Speed 35-50km/h
 Driving Mileage 50-70km
Rear shock absorption 8 kg national standard steel plate
 Headlight 15-bead LED high-brightness headlights
Display LCD instrument
 Life Span 5 years
Color Blue, red, ice blue, gray
Upgradeable (optional)

1. permanent magnet 1000W motor, dual 18-tube controller

2. permanent magnet 1200W motor, 24-tube controller.
