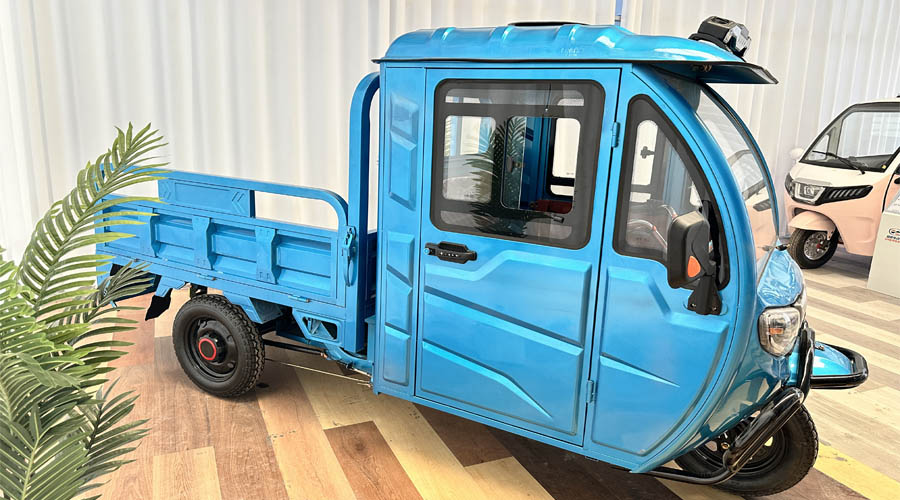

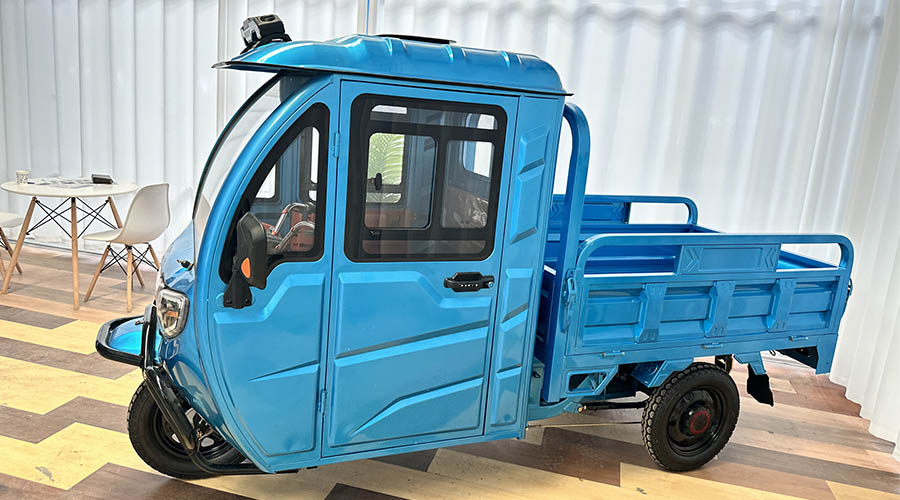

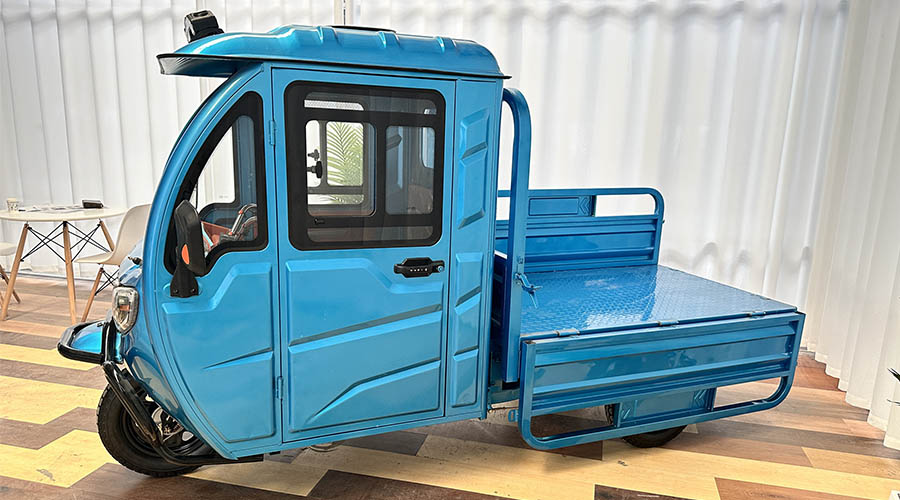

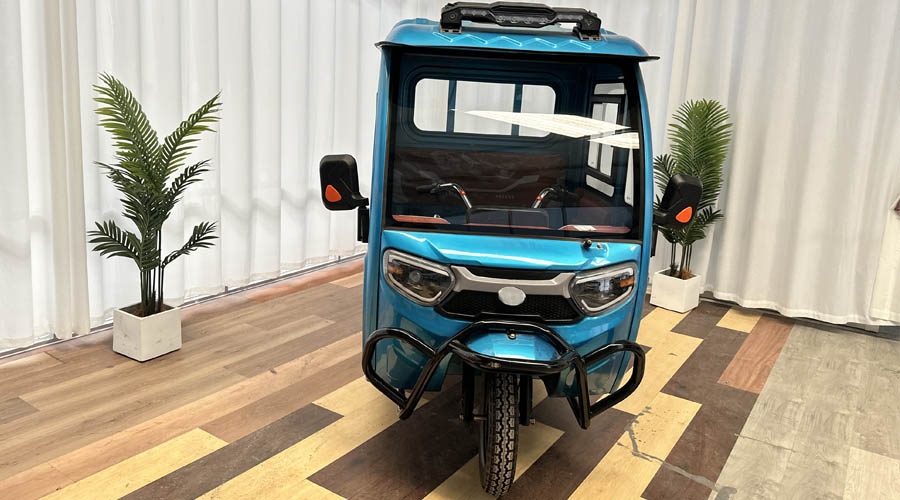

Cargo Tricycle-AP-EC16P

































Power 1200W
Voltage 48V/60V
Controller 24 tubes
Vehicle dimensions (length * width * height) mm 3040*1100*1720mm
 Cargo Boxe Size (length * width) 1600*1100mm
 Ground Clearance  mm 230mm
Transmission mode 2000mm
Tire Size Before 375 and after 400-12
 Rim typ 375-12
Seat Size 740*350mm
Battery  Optional (lead acid, lithium battery)
Rear axle 160 integrated gear shifting
Front shock absorber 37 external spring hydraulic shock absorption
Baking paint process Electrophoretic paint
Brake System Front and rear disc brakes
Grade Ability 20-30°
Car material mm Steel plate door core and steel plate bottom
maximum total mass 300KG
Rated loading weight 245KG
Charge Time(h) 6-8h
Maximum Speed 53km/h
Driving Mileage 70-90km
Rear shock absorption /
Headlight LED spotlight headlight
Display /
Life Span 5 years
Color Blue, red, ice blue, gray

Upgradeable (optional)

1500W permanent magnet motor,30-tube controller
